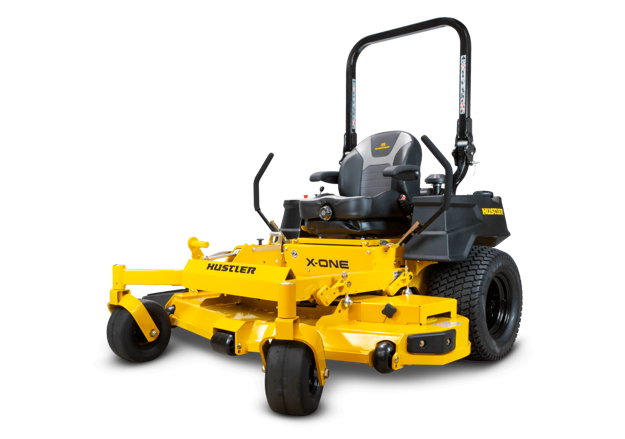

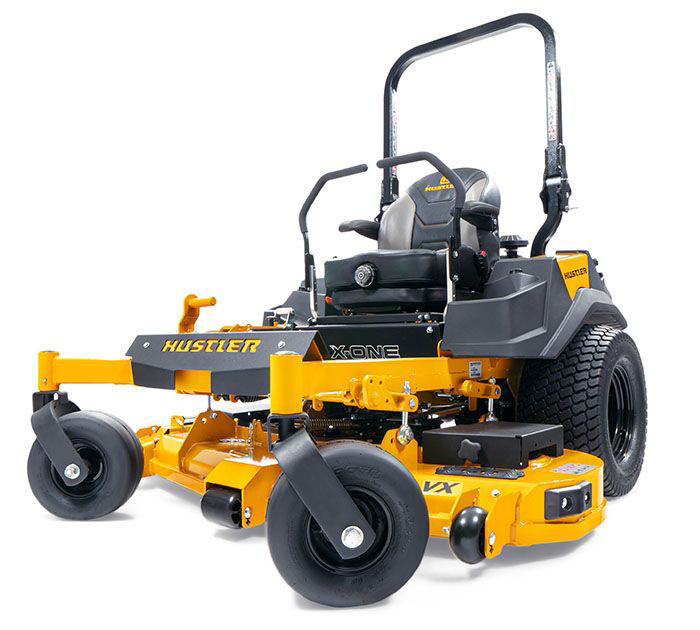

We designed the X-ONE mainframe with heavy-gauge rectangular tubing for strength. Then we narrowed the body, allowing the X-ONE to carry three different deck sizes to meet any user’s needs. With a top speed of 17.7 kph, the X-ONE makes quick work of the largest jobs. ROPS - Folding, supplied with unit.Full suspension seat as standard.60" Cut side discharge deep decks with VX4® technology.Fabricated one piece chassis.Kawasaki V Twin FX850V engine.Remote heavy duty canister air cleaner.44.2 L fuel capacity.Commercial piston pumps and separate drive motors.24" Drive and 13" caster tyres.0-17 kph (0-10.5 mph) to get the job done fast.SmoothTrak™ steering with patented automatic park brake system.Very high blade tip speed for beautiful cut - 18,410 fpm.Commercial duty, sealed deck spindles.Standard hour meter.
  • Domestic Warranty

    5 Year or 500 hours Domestic Warranty
  • Commercial Warranty

    2 Year Commercial Warranty
  • Hire/Rental Warranty

    90 days
  • Engine (cc)

    852 cc
  • Engine

    Kawasaki FX850V
  • HP

    27.0 hp (20.1 kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)
  • Fuel Capacity

    44.2 L
  • Dry Weight

    571 kg
  • Safety Features

    Standard foldable ROPS with seat belt. Operator presence system connected to seat, deck clutch and park brake switches. Stabiliser wheels at rear of lawn mower. Discharge chute deflector.
  • Fuel

    Unleaded fuel (see engine manufacturers specifications)
  • Drive System

    Dual hydrostatic. Individual pumps power two direct-drive wheel motors.
  • Ground Speed - Forward

    Infinitely variable 0-17.7 kph (0 - 11 mph)
  • Ground Speed - Reverse

    0-9.6 km p/h
  • Brakes

    In Service: Hydrostatic dynamic braking. Parking: Automotive-style drum brakes. When steering levers are placed in park position, integral park brakes are automatically engaged.
  • Caster Tyres

    13 x 6.5 - 6, smooth tread
  • Tyres - Drive

    24 x 12 - 12, turf tread
  • Seat

    Premium moulded vinyl full suspension seat with armrests. Fore and aft sliding adjustment.
  • Hour Meter

  • ROPS

    Certified, 2-post, foldable ROPS with se
  • Seat Suspension

    Bolstered Grammer Suspension with operator isolation and armrests
  • Height

    1333.5 mm With ROPS folded / 71.25" (1724.7 mm) With ROPS up.
  • Width

    1676.4 mm w/discharge chute up.
  • Width (tyre-to-tyre)

    1371.6 mm
  • Deck System

    Side-Discharge: 60" cut VX4®. Free-floating deck using three blades with centre blade to the front. Includes 3 deck-mounted rollers to improve flotation in rolling and uneven terrain.
  • Cutting Widths

    60” (1500 mm) cut side discharge
  • Deck Lift

    Raise and lower deck from the driver's seat with a simple foot-operated deck height adjustment. Pin for setting height, transport position. Change cutting heights, climbing curbs and trailer more easily.
  • Deck Construction

    10 ga welded steel. Solid 38 mm x 9.5 mm steel bars reinforce impact areas on trim edges. Commercial style, box section reinforced front edge. Reinforcements welded onto spindle mount areas.
  • Cutting Height(s)

    Foot-operated deck height adjustment. Pin for setting height, detent for transport position. Height adjustment in .25” increments from 1.0” to 5.5” (25.4 mm to 139.7 mm, .6 cm increments)
  • Blade(s)

    (3) Heavy-duty, blades 20.5" x 2.5" x .20"
  • Blade Tip Speed

    18,410 fpm
  • Discharge Chute

    High density, rubberised.
  • Transmission

    Hydro-Gear PK 12cc pump and Parker TF0240 wheel motors.
