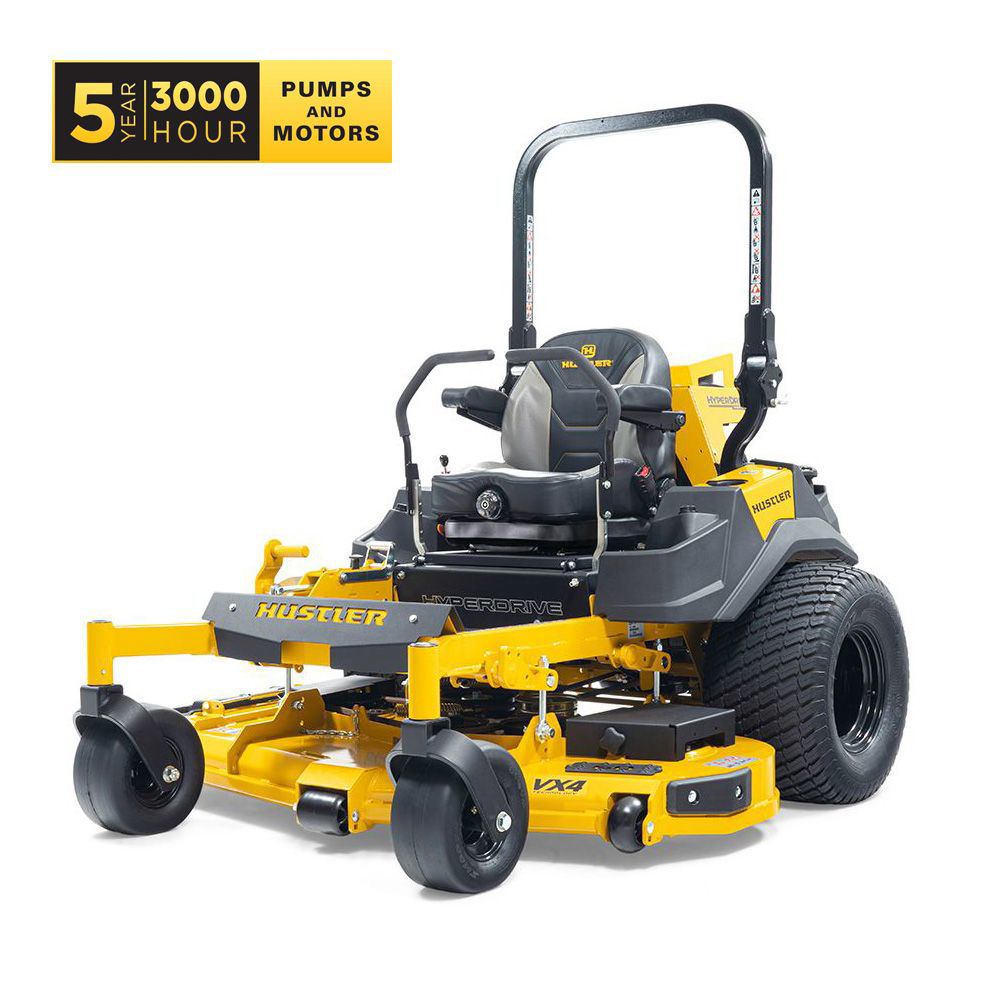

HUSTLER SUPER Z HYPERDRIVE 60''

Grammer Suspension Seat

Flex Forks™ Suspension as standard

60" Cut side discharge VX4™ Clean-Cut deep deck technology.

Fabricated one piece chassis

Kawasaki V Twin FX1000V engine

Remote air cleaner

45.4 L (12 US gal) fuel capacity

HyperDrive™ Hydro System - industrial grade pumps and motors

Industrial slipper piston pumps and separate drive motors

Fan forced hydro oil cooler

26" Drive and 13" pneumatic caster tyres

0-24.14 kph (0-15 mph) to get the job done fast

SmoothTrak™ steering - responsive precise control

Very high blade tip speed for beautiful cut - 18,630 fpm

Commercial duty, sealed deck spindles

Standard hour meter

• Domestic Warranty

  5 Year Domestic Warranty

• Commercial Warranty

  3 Year Commercial Warranty (3rd year parts only) Pumps & Motors 5yr or 3000 Hrs

• Engine (cc)

  999 cc

• Engine

  Kawasaki FX1000V

• HP

  35.0 hp (26.1kW) @ 3600 rpm (Please Note: Horsepower rating as tested to SAE J1995 Standards.)

• Fuel Capacity

  45.4 L

• Dry Weight

  792 kg

• Safety Features

  Standard foldable ROPS with seat belt. Operator presence system connected to seat, deck clutch and park brake switches. Stabiliser wheels at rear of lawn mower. Discharge chute deflector.

• Fuel

  Unleaded fuel (see engine manufacturers specifications)

• Drive System

  Dual hydrostatic. Individual pumps power two direct-drive wheel motors.

• Ground Speed - Forward

  Infinitely variable 0-25.7 km p/h

• Ground Speed - Reverse

  0-12.1 km p/h

• Brakes

  In Service: Hydrostatic dynamic braking. Parking: Automotive-style drum brakes. When steering levers are placed in neutral position, integral park brakes are automatically engaged.

• Caster Tyres

  13 x 6.5 - 6, smooth tread

• Tyres - Drive

  26 x 12 - 12, turf tread

• Seat

  I3M suspension seat

• Hour Meter

  Standard

• ROPS

  Standard foldable ROPS with seatbelt.

• Height

  1370 mm With ROPS folded down / 71.5" (1816 mm) With ROPS up.

• Width

  1676 mm w/discharge chute up.

• Width (tyre-to-tyre)

  1447.8 mm

• Deck System

  Side-Discharge: 60" cut VX4®. Free-floating deck using three blades with centre blade to the front. Mower deck is suspended at the corners. Includes three standard deck-mounted rollers to improve flotation in rolling and uneven terrain.

• Cutting Widths

  60” cut Side Discharge

• Deck Lift

  Raise and lower deck from the driver's seat with a simple foot-operated deck height adjustment. Pin for setting height, transport position. Change cutting heights, climbing curbs and trailer more easily.

• Deck Construction

  7 ga. welded steel. Reinforced 7 ga. spindle mount disc. 11 ga. formed channel w/ rolled edge

• Cutting Height(s)

  Foot-operated deck height adjustment. Pin for setting height, detent for transport position. Height adjustment in 1/4” increments from 1.0” to 5.5” (25.4 mm to 139.7 mm, 6 mm increments)

• Blade(s)

  (3) Heavy-duty blades 20.5" x 3.00" x .25"

• Blade Tip Speed

  18,630 fpm

• Discharge Chute

  High density, rubberised.

• Transmission

  Parker TG280 wheel motors and Sauer Danfoss DDC-20 pumps
