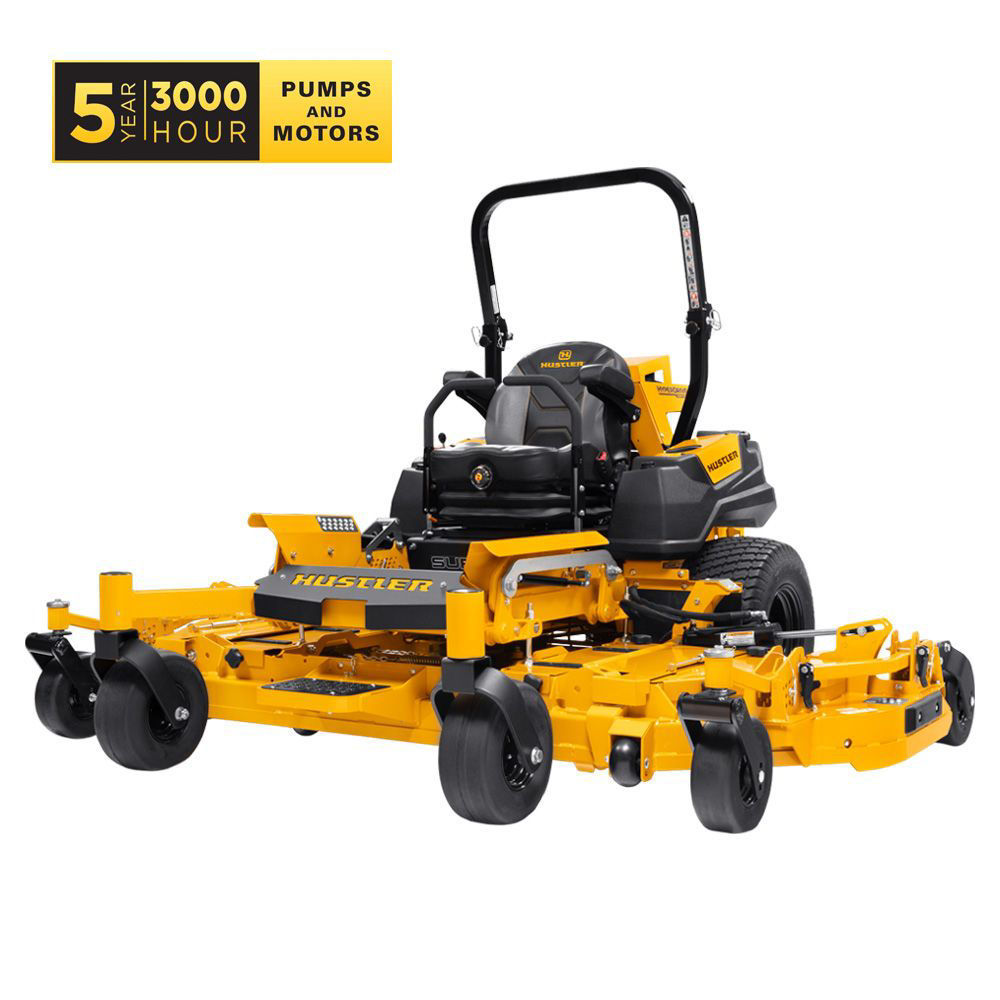

Hustler Super 104 EFi

$52,500.00
$56,999.00
The Super 104 is an affordable wide-area mower with the maneuverability of a zero-turn. Features include premium Kawasaki EFi engine, the most powerful in its class, 104” cutting width, Hyper-Drive System, Grammer premium suspension seat (standard), simple, service friendly design, and hydraulic wing deck lift. The Super 104 can mow up to 84 acres in 8 hours at 17km/h and will mow where most wide-area mowers cannot.
  • Domestic Warranty

    5 Year Domestic Warranty
  • Commercial Warranty

    2 Year Commercial Warranty
  • Engine (cc)

    999 cc EFi
  • Engine

    Kawasaki FX1000V EFi
  • HP

    38.5 hp @ 3600 RPM engine speed
  • Fuel Capacity

    45.4 L
  • Dry Weight

    1136 kg
  • Safety Features

    Standard foldable ROPS with seat belt. Operator presence system connected to seat, deck clutch and park brake switches. Stabiliser wheels at rear of lawn mower. Discharge chute deflector.
  • Fuel

    Unleaded fuel (see engine manufacturer's specifications)
  • Drive System

    Dual hydrostatic. Individual pumps power two direct-drive wheel motors. Hydrostatic system operates on 15W50 Mobil 1 synthetic motor oil. Transmission drive (oil) cooler for increased system life.
  • Ground Speed - Forward

    Infinitely variable 0-17.7km p/h
  • Ground Speed - Reverse

    0-12.07 km p/h
  • Brakes

    In Service: Hydrostatic dynamic braking. Parking: Automotive-style drum brakes. When steering levers are placed in park position, integral park brakes are automatically engaged.
  • Caster Tyres

    15 x 6.0 - 6, rib tread
  • Tyres - Drive

    26 x 12 - 12, turf tread
  • Seat

    Grammer suspension seat with isolator platform.
  • Hour Meter

    Standard
  • ROPS

    Standard foldable ROPS with seatbelt.
  • Seat Suspension

    Standard
  • Height

    1370 mm With ROPS folded down / 1816 mm With ROPS up.
  • Width

    With wings down: 2695 mm With wings up at gauge wheels: 2032 mm With wings up at deck base: 1842 mm
  • Width (tyre-to-tyre)

    1532 mm
  • Deck System

    Rear-Discharge: 104" cut deck. Free-floating deck using five blades. Centre deck is suspended at the corners, houses three blades and includes five deck mounted adjustable anti-scalp rollers. Two wing decks house one blade each and are attached to the centre deck with pivoting mounts. Outside of wings are suspended with adjustable casters and have one adjustable anti-scalp wheel each.
  • Cutting Widths

    104" Rear Discharge.
  • Deck Lift

    Hydraulic powered deck and wing lift. Raise and lower deck from driver's seat with simple foot-operated deck height switch. Pin for setting height, transport position. Change cutting heights, climb curbs and trailer more easily. Raise and lower deck wings with a hand operated switch on the instrument panel.
  • Deck Construction

    Welded steel. Solid 1.5" x .375" (38 mm x 9.5 mm) steel bars reinforce impact areas on trim edges. Gusset style box section reinforces front edges. Reinforcements welded onto spindle mount areas.
  • Cutting Height(s)

    Foot-operated deck height adjustment. Pin for setting height, detent for transport position. Height adjustment in .25” increments from 1.0” to 5.5” (25.4 mm to 139.7 mm, 6 mm increments)
  • Blade(s)

    (5) Heavy-duty, heat treated, low-lift steel Fusion™ blades 1 x 23.86" x 2.50" x .203" CW cut 1 x 23.86" x 2.50" x .203" CCW cut 1 x 20.50" x 2.50" x .203" CW cut 2 x 20.50" x 2.50" x .203" CW cut
  • Blade Tip Speed

    15,800 fpm
  • Transmission

    Parker TG0360 wheel motors and Sauer Danfoss DDC-20 pumps
